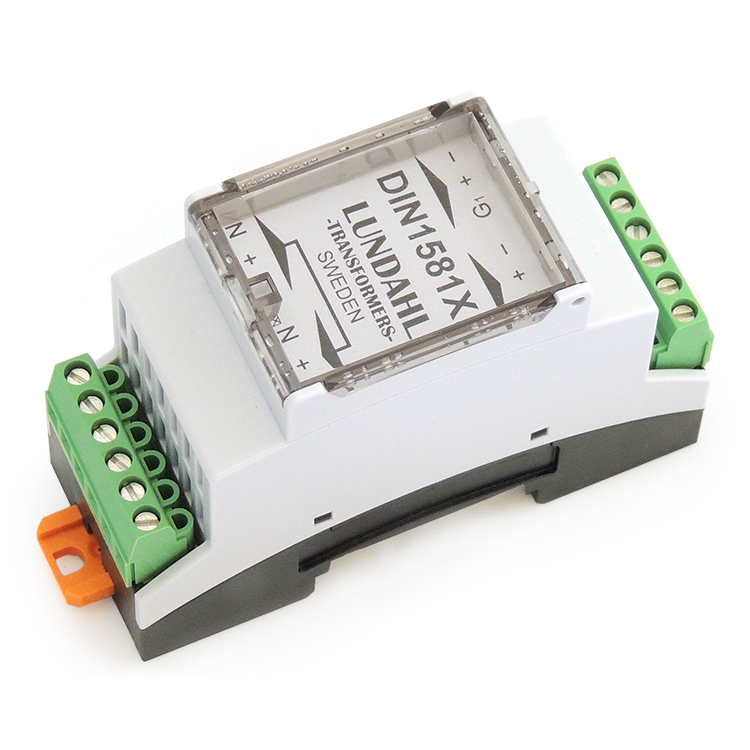

DIN1581XL is a ready-to-use transformer unit with screw terminals. DIN1581XL provides galvanic isolation and splitting 1 direct + 2 isolated. It is suitable for low-to-medium signal levels.
| Transformer static resistance primary + secondary | 60Ω each channel |
| Core | Mu metal lamination core |
| Max signal level (THD less than 1%) | +13 dBU @ 50 Hz |
| Frequency response @ 0 dBU (source 150Ω, load 10kΩ) | 10 Hz - 100 kHz +/-1 dB |
| Distortion (THD) at 50 Hz (source 150Ω) | < 0.2 % @ 50 Hz, for all signal levels -40 through +8 dBU |
| Loss across transformer with load 10kΩ | 0.2 dB |
| Isolation between input and output sides | 1 kV |
